In-Line Turbidimeter

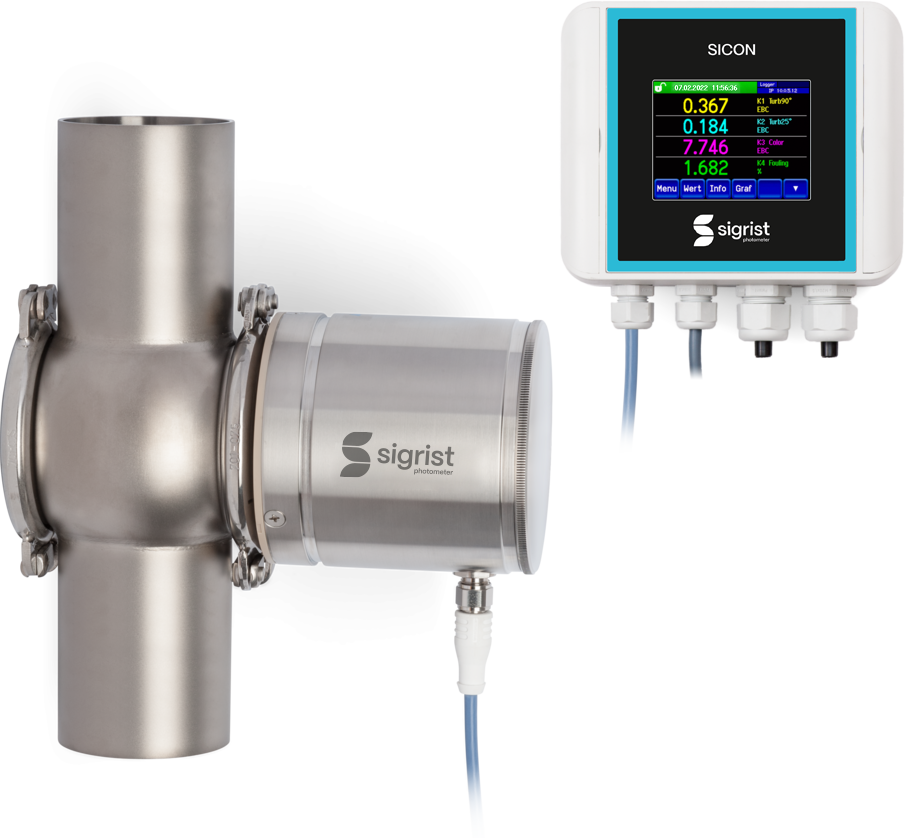

The TurBiScat monitors turbidity in liquids, optional also the (beer)colour in EBC. The combination of Hastelloy and sapphire in a sealless design allows operating the unit in practically all process applications. Turbidity measurement is done with colour compensation. Window fouling is monitored, compensated and can be checked using an anti-fouling control. Calibration is easily done using a secondary reference standard.

Read more about turbidity measurement for monitoring and filtration control in our article.

Maintenance-free design without seals
Wide nominal range
Extended sensor check with anti-fouling control

Specification

Wavelength turbidity: LED 650 nm
Wavelength color (optional): LED 430 nm
Measuring principle: 90°/25° scattered light measurement
Resolution: < 0.001 EBC of full scale
Reproducibility: ±1 % @ 0 .. 2 EBC
±2 % @ 2 .. 100 EBC (90°)
±3 % @ 2 .. 100 EBC (25°)
±10 % @ 100 .. 1,000 EBC
Repeatability: 0.001 EBC
or ±0.25% of full scale
Reaction time: less than 2 s (step response – limit value switch)
Enclosure: Stainless steel 1.4301
Protection class: IP 66
Supply voltage: 9 .. 30 VDC, 3 W (of control unit)
Dimensions: Ø100.5 x 118.5 mm
Weight: Approx. 2.3 kg
Sample temperature: -10 .. +100 °C
120 °C max. 2 h
150 °C max. 1 h
180° C max. with cooling (optional)
Sample pressure: 2 MPa (20 bar) @ 180 °C
4 MPa (40 bar) @ 100 °C
Connections: DN 40 .. DN 125
1½” .. 6″ Varivent®
Ambient environment: -10 .. +50 °C
0 .. 100 % relative humidity
Nominal range color: 0 .. 50 EBC
Nominal range turbidity: 0 .. 1,000 EBC
0 .. 4,000 NTU
Linearity: ±0.5% full scale @ 0 .. 2 EBC
Warm-up time: < 3 min.
Temperature stability: < -0.15 %K^-1 of full scale
Cleaning: CIP/SIP compatible up to 120 °C
Material sensor head: Hastelloy C-22
Windows material: Sapphire
